Understanding Image Gradients

Understanding Image Gradients as Terrain Slopes

i) Imagining the Image as a Surface:

Visualize an image as a three-dimensional surface where the x and y axes correspond to pixel coordinates, and the z-axis (height above the plane) represents the brightness of each pixel. This representation transforms our flat image into a “terrain” or “landscape” of brightness levels. For a black-and-white image, higher regions on this surface represent bright areas, while lower regions signify darker areas. In this “landscape”, the edges in the image are analogous to abrupt cliffs or steep hills. The steeper the cliff or hill, the more significant the brightness change in the image, and hence, the stronger the edge.

ii) Gradient as Slope:

In this 3D terrain analogy, the gradient at any point (x,y) corresponds to the steepest slope of the terrain at that point. If you were hiking on this imagined terrain, and you stood on a point (x,y), the gradient would tell you the direction in which the climb (or descent) is the steepest and how steep that climb is.

Mathematically, this can be represented as:
\( \nabla I(x,y) = \left( \frac{\partial I}{\partial x}, \frac{\partial I}{\partial y} \right) \)
Here, \( \frac{\partial I}{\partial x} \) and \( \frac{\partial I}{\partial y} \) can be thought of as the slopes in the x and y directions, respectively. The steeper the slope, the larger the magnitude of these derivatives, and thus, the stronger the edge.

iii) Magnitude and Direction:

The magnitude of the gradient (given by \( |\nabla I(x,y)| \)) tells us how steep the slope is at any point — the steeper the slope, the stronger the edge. The direction of the gradient, on the other hand, points in the direction of the steepest ascent.

iv) Practical Implications:

When you apply an edge detection algorithm, areas with high gradient magnitudes (i.e., steep slopes in our terrain analogy) get highlighted, marking potential edges in the image. In contrast, flat regions, which have low gradient magnitudes, aren’t considered edges.

Conclusion:

By imagining images as brightness terrains or landscapes, the concept of gradients becomes more palpable. Just like you’d use a topographical map to understand the contours of a landscape, gradients give us a map of brightness contours in an image, helping identify features crucial for tasks like facial recognition.



Understanding Image Gradients with a Specific I(x,y)

i) Our Image Function:

We’ll model our image brightness as the function:
\( I(x,y) = e^{-\left(x^2 + y^2\right)} \)
This function describes a ‘hill’ of brightness at the center (0,0) that tapers off as you move away from the center.

ii) Calculating the Gradient:

Given our function, we can compute the gradient components as:
\( \frac{\partial I}{\partial x} = -2xe^{-\left(x^2 + y^2\right)} \)
\( \frac{\partial I}{\partial y} = -2ye^{-\left(x^2 + y^2\right)} \)
This means that the rate of change of brightness in the x and y directions depends on both the position (x,y) and the inherent shape of our Gaussian ‘hill’.

iii) Magnitude and Direction:

Using our computed gradients, the magnitude of the gradient at any point (x,y) is:
\( |\nabla I(x,y)| = \sqrt{\left(-2xe^{-\left(x^2 + y^2\right)}\right)^2 + \left(-2ye^{-\left(x^2 + y^2\right)}\right)^2} \)
This magnitude tells us how steeply our brightness hill rises or falls at any given point. The direction of the gradient points towards the steepest ascent — which, for our Gaussian, will always be pointing towards or away from the center, depending on your position.

iv) Practical Implications:

Edges in our Gaussian image would be detected where there’s a significant change in brightness — likely where the hill starts to fall away. By calculating the magnitude of our gradient, we can pinpoint these regions. In practice, we’d look for places where the gradient magnitude exceeds a certain threshold to identify potential edges.

Conclusion:

Using a specific function for \( I(x,y) \) has provided us a tangible landscape of brightness to work with. The gradient’s mathematical properties allow us to locate and understand significant features (like edges) in this landscape, demonstrating the power of calculus in image analysis.



Detailed Edge Detection using the Gaussian Function

i) Image Function:

We model our image brightness using:
\( I(x,y) = e^{-\left(x^2 + y^2\right)} \)
Which forms a Gaussian ‘hill’ of brightness.

ii) Gradient Magnitude:

The gradient magnitude at any point (x,y) is given by:
\( |\nabla I(x,y)| = \sqrt{\left(-2xe^{-\left(x^2 + y^2\right)}\right)^2 + \left(-2ye^{-\left(x^2 + y^2\right)}\right)^2} \)

iii) Edge Detection:

To identify edges, choose a threshold value for the gradient magnitude. Points (x,y) where the gradient magnitude exceeds this threshold are marked as edges. For our Gaussian, the edges will form a circle where the Gaussian drops off steeply.

iv) Practical Outcome:

Applying this technique to our Gaussian function, we’d observe a circular “ring” of edge points around the base of the Gaussian hill. This ring represents the region where brightness changes most rapidly — the “edge” of the hill.

Conclusion:

Edge detection methods, such as the gradient magnitude approach discussed here, allow us to highlight significant features in an image. In our Gaussian example, this methodology successfully outlined the hill’s base, providing a concrete illustration of the gradient’s role in image processing.



Gaussian Surface Plot


Detailed Edge Detection using the Laplacian of Gaussian (LoG)

i) Image Function:

We model our image brightness using the Gaussian function:
\( I(x,y) = e^{-\left(x^2 + y^2\right)/2\sigma^2} \)
Think of this as a soft, rounded hill. The higher you go up the hill, the brighter it gets. The parameter \( \sigma \) determines the width of this hill.

ii) Laplacian of Gaussian:

The Laplacian of Gaussian is like feeling the curvature of our hill with your hands. If the hill is curving upwards, the LoG is positive; if it’s curving downwards, the LoG is negative. Mathematically, it’s given by:
\( \nabla^2 I(x,y) = \frac{x^2 + y^2 – 2\sigma^2}{\sigma^4} e^{-\left(x^2 + y^2\right)/2\sigma^2} \)

iii) Edge Detection:

Edges are like the boundaries where our hill starts to drop off. To find these edges, we look for places where the LoG changes from positive to negative or vice versa. This is like finding the point on the hill where it starts to descend after reaching the peak.

iv) Practical Outcome:

When we apply this method to our hill (the Gaussian function), we find a circular “ring” that marks the boundary where the hill starts to drop. It’s like drawing a line around the base of the hill to show where it starts and ends.

Conclusion:

The Laplacian of Gaussian is a bit like a detective tool in image processing. It helps us find the boundaries or “edges” in an image by sensing the changes in brightness. In our hill analogy, it’s the tool that helps us draw a line around the base of our hill, showing us exactly where it starts and ends.

Understanding the Laplacian of Gaussian (LoG)

Gaussian Function Visualization:

3D plot of Gaussian function

This image represents the Gaussian function, visualized as a hill. The brighter the region, the higher the intensity of the function.

Laplacian of Gaussian Visualization:

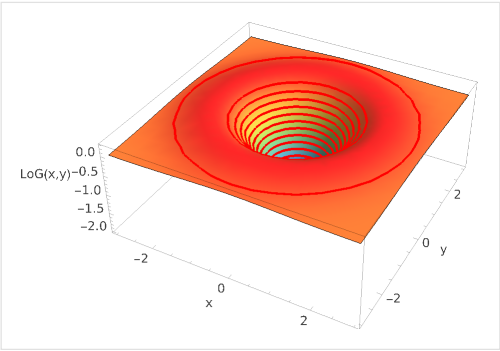

3D plot of Laplacian of Gaussian

This image represents the Laplacian of the Gaussian function. The “dip” in the center corresponds to the region where the Gaussian hill changes curvature from concave to convex. The red circular line indicates the zero crossings of the LoG, highlighting the boundary or “edge” of the hill.

Why the Dip in LoG?

The Laplacian of Gaussian (LoG) measures the second derivative of the Gaussian function. The “dip” or negative region in the LoG plot corresponds to the region of the Gaussian hill where the curvature is convex. The zero crossings of the LoG (where it changes from positive to negative) are significant because they correspond to the steepest drop in the Gaussian hill, which is where edges are typically detected in images.

In simpler terms, imagine you’re walking on the Gaussian hill:

  • Starting at the top, you first walk downhill (positive slope).
  • You then reach a point where the hill starts to flatten out before going uphill again. This point of inflection is where the LoG is zero.
  • As you continue walking, you’re now going uphill, which corresponds to the negative region of the LoG.

Conclusion:

The Laplacian of Gaussian is a powerful tool in image processing that detects edges by sensing changes in brightness. The relationship between the Gaussian function and its Laplacian is crucial for understanding how edge detection algorithms work.




Understanding the Laplacian and Its Role in Edge Detection

Gaussian Function Visualization:3D plot of Gaussian function

This image represents the Gaussian function, visualized as a hill. The brighter the region, the higher the intensity of the function.

Laplacian of Gaussian Visualization:3D plot of Laplacian of Gaussian

This image represents the Laplacian of the Gaussian function. The “dip” in the center corresponds to the region where the Gaussian hill changes curvature from concave to convex. The red circular line indicates the zero crossings of the LoG, highlighting the boundary or “edge” of the hill.

What is the Laplacian?

The Laplacian of a function \( f(x,y) \) gives the curvature or the combined concavity/convexity at every point \( (x,y) \) based on the value of \( f(x,y) \). Specifically:

  • If the Laplacian \( \nabla^2 f \) at a point \( (x,y) \) is positive, it indicates that the function \( f(x,y) \) is concave (curving upwards like a bowl) at that point.
  • If the Laplacian \( \nabla^2 f \) at a point \( (x,y) \) is negative, it indicates that the function \( f(x,y) \) is convex (curving downwards like a dome) at that point.
  • If the Laplacian \( \nabla^2 f \) is zero at a point \( (x,y) \), it suggests a point of inflection where the curvature changes.

Conclusion:

The Laplacian is a powerful mathematical tool that provides insights into the curvature of functions in multiple dimensions. In image processing, it’s particularly useful for detecting edges, as the zero crossings of the Laplacian often correspond to areas where the image intensity changes rapidly.
